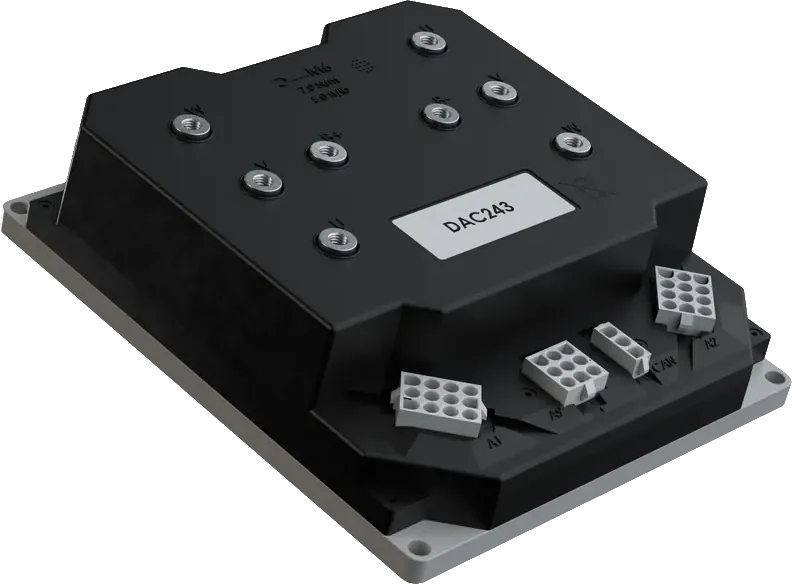

Trionic DAC243 Dual AC Drive

Product Highlights

The DAC243 is a 24V, 300 AMPS Dual AC Drive

  • Controls various types of AC Motors
  • Multiple speed sensor configuration

General features

  • AC, PMAC (IPM, SPM), BLDC motor compatible
  • Controls independently 2 motors
  • Control motor brake
  • Absolute Sin Cos sensor inputs
  • Encoder X Y Z sensor inputs

Technical Data

Power Supply 24V 16 to 33 Vdc
Continuous current300A
Peak current500A
PWM Frequency10 Khz
ON/OFF power outputs23A
Digital Inputs21.25kΩ
Analog inputs10-5 Vdc
Configurable digital I/O1
Water proofIP 67
Working Temperature -40 +50°C
Overall Dimensions7.6” x 8.75” x 2.7”
192 x 222 x 68 mm

Left motor plug
Sensor supply 2 12V & 5V212V & 5V
ON/OFF power outputs13A
Digital inputs 3 3X Y Z
Analog inputs3Sin, Cos, Temp

Right motor plug
Sensor supply212V & 5V
ON/OFF power outp13A
Digital inputs 3 3X Y Z
Analog inputs3Sin, Cos, Temp
Trionic GPC442 Canbus I/O
