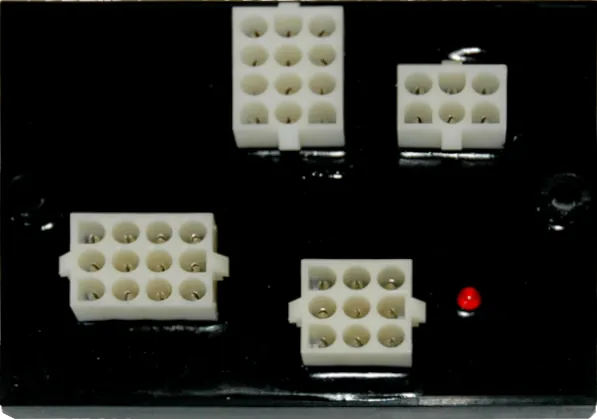

Mini I/O
Product HighlightsThe Mini I/O module allows the Mobile Equipment OEM to very cost effectively locate I/O where it is needed thereby eliminating complex & costly wiring harnesses and replacing it with a CANbus harness & power. The Mini I/O module can also be configured as a controller providing small OEM’s using manual hydraulics an entry level pathway to e-Hydraulics and electronic Joystick control.
General features
|
Technical Data
Power Supply | 12/24V | 8.5 to 32V DC |
High Side Outputs | 8 | 3A |
Low Side Outputs | 8 | 1A |
Digital Inputs | 9 | 1.25kΩ imp. |
Analog Inputs | 2 | 0.5 - 4.5V |
Water proof | IP 67 | |
Working Temperature | -40 +60°C | |
Overall Dimensions | 4.6” x 3.7” x 0.9” |
