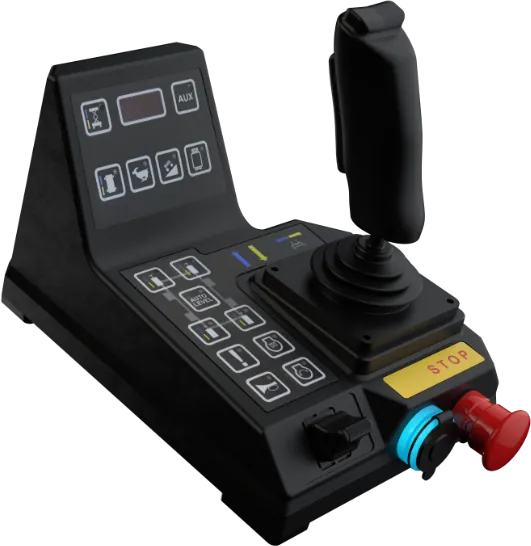

Trionic RT Platform Box

Product Highlights

The RT Platform Box (CANbus) is an integrated Platform Solution for RT Scissors. It provides a compact design as well as the following:

  • Three digit display which shows battery charge status and fault codes to the operator
  • Pre-wired for easy installation
  • CANbus enabled
  • Customizable

General features

  • Analog inputs and switch inputs for joystick
  • 15 momentary switches
  • Three digit display
  • Up to 15 LED indicators
  • CANbus interface to main valve/motor control module
  • minimizes cable wiring/size
  • Optional single axis Finger Joystick
  • Integrated Buzzer and optional USB Charger

Technical Data

Power Supply 12/24V 8.5 to 33 Vdc
AUX. Digital Inputs21.25kΩ imp.
AUX. Analog Inputs20-5V
AUX. Supply output1750 mA
Working Temperature -40 +60°C
Weight1.4 Kg
Overall Dimensions

11.8 x 7.6 x 9.3”

298 x 191 x 236 mm
