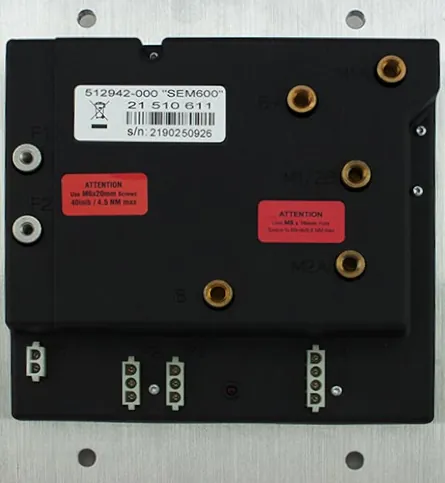

SEM600

Trionic SEM 600

Product Highlights

The SEM Dual motor power panel control drives 2 separately excited traction motors providing continuous differential operation and automatic differential lock when needed. US PAT. No. 7,956,558.

  • No Motor speed sensor
  • No steering angle sensor
  • Permanent differential control
  • Automatic differential lock

General features

  • 480A traction motor continuous current
  • CAN bus interface
  • RS232 connection to hand-held “EZcal” for calibration and diagnostics
  • “FLASH” memory allows configuration to specific customer needs
  • Failsafe functionality to comply with EN 954-3

Technical Data

Power Supply 48V
Motor Peak Rating15HPFor each motor
Water proofIP 65
Working Temperature -40 +60°C
Overall Dimensions8 ½ x 6 ¾ x 2 ½"
216 x 248 x 64 mm
