TS100 and TS200

Product Highlights

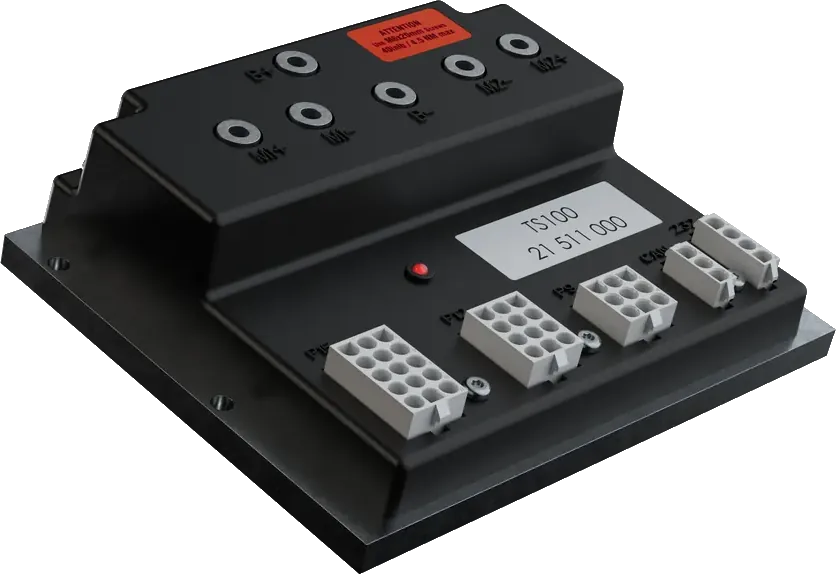

The TS100 and TS200 are integrated dual motor & vehicle controllers commonly used in smaller scissor lift applications.

2 x 3.2 HP (TS100) traction motor controller and pump motor controller
2 x 4 HP (TS200) traction motor controller and pump motor controller
Proportional Traction and steering
Integrated tilt sensor can be configured to limit or prevent selected functions when vehicle is tilted
Platform overload can be configured for EN280 compliance (requires pressure sensor and height sensor [EZfit])
Flash memory allows factory configuration to exact vehicle needs
Inputs from platform joystick & switches (or ground mode emergency switches) control vehicle functions via protected valve & line contactor drivers
Inputs from various cutout switches can be configured to limit or prevent selected functions depending on vehicle state.
Dual micro-controller ensures failsafe operation
Available EZcal hand-held allows access to configuration settings and diagnostics including history log (via RS232)
All inputs & outputs can be tested with EZcal to identify wiring errors
Integral status LED provides (flashing) fault code indication

Optional: Text display module provides end-user status & fault descriptions to minimize down time
