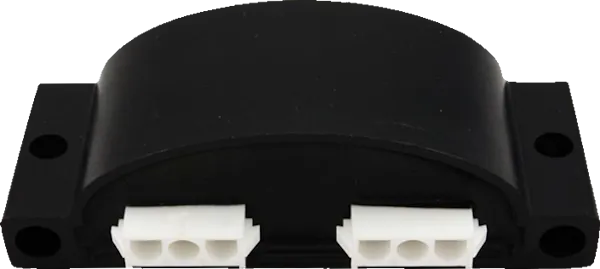

EZfit Dual Angle Transducer
 | General features
|
Technical Data
| Angle range | ± 60° | |
| Resolution | Better than 1° | |
| Response time | 100ms max. | |
| Output Voltage Range | 1.0 - 4.0V DC | 2.5V at level |
| Supply Voltage (reverse protected) | 8.5 - 35V DC | |
| Supply Current | 20mA max | |
| Output Current | 2mA | |
| Operating temperature | -40 +70°C | |
| Storage Temperature | -40 +85°C | |
| Water proof | IP 67 |
