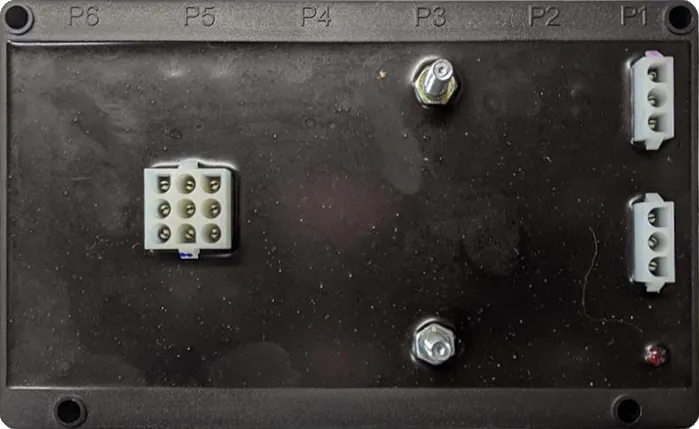

Trionic Quad H-Bridge

Product Highlights

The CANbus enabled Quad H-Bridge module has eight outputs switchable to B+ or B-:

  • Four H-bridge outputs can switch direction of four motors, or
  • Eight discrete outputs switched to B+ or B-

General features

Internal current monitors can shut down H-Bridge output pairs at a specified over-current up to 12 Amps.

  • 4 H-bridge outputs or 8 discrete outputs to B+ or B-
  • 4 current monitors between four pairs of outputs
  • Current overload shutdown
  • CAN based

Technical Data

Power Supply 12 / 24V 8.5 to 33 Vdc
H-bridge Outputs8A protectedS/C protected
Internal current monitors4
Water proofIP 67
Working Temperature-40 + 60°C
Overall Dimensions7.3” x 4.5” x 1.3”
186 x 115 x 34 mm
