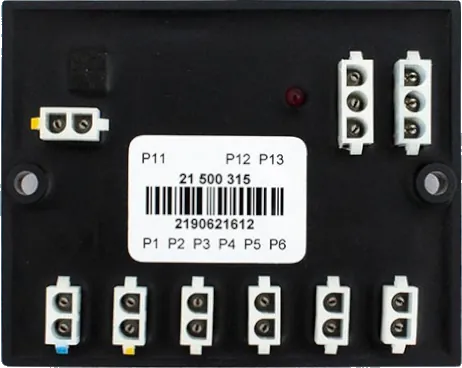

VCCM

Trionic VCCM

Product Highlights

Provides 3 x 2 PWM current controlled outputs
Ensures precise and repeatable control of solenoid valve coils
Constant current ouputs controlled via CAN
6 outputs, 0 – 4 A

Technical Data

Power Supply	12 / 24V	8.5 to 33 Vdc
PWM Channels (low side) 0-4 A	6
Sealing	IP67
Operating Temperature	-40 +60°C
Overall Dimensions	7.3” x 4.5” x 1.3” 117 x 94 x 23 mm
