CANTilt Module

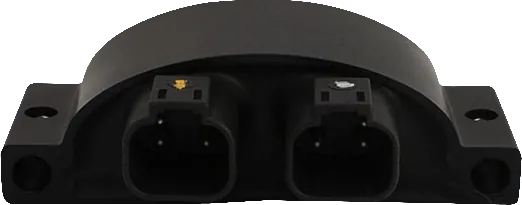

Trionic CANTilt Module

Product Highlights

  • Dual Axis Tilt measurement over CAN
  • Factory Configurable for multiple nodes and speeds
  • Easy Installation
  • IP67

General features

  • No moving parts
  • Fully protected (reverse supply, output s/c, etc)
  • Connectors used on module are 2 x Deutsch DTF13-4P

Technical Data

Tilt range-20° +20°In x and y axis
Resolution  MessageBetter than 0.2°Increments by 0.1°
Repeatability0.2°Limited by Resolution
Response time100ms max.
Supply Voltage (reverse protected)8.5 - 60 Volts DC
Supply Current20mA max.
Output Current2mA
Operating temperature-40 +70°C
Storage Temperature-40  +85°C
Water proofIP 67
